All-in-One Integrated Solution
Low Maintenance& Long Service Life
Outdoor Durability
Rapid Installation & Turnkey Deployment

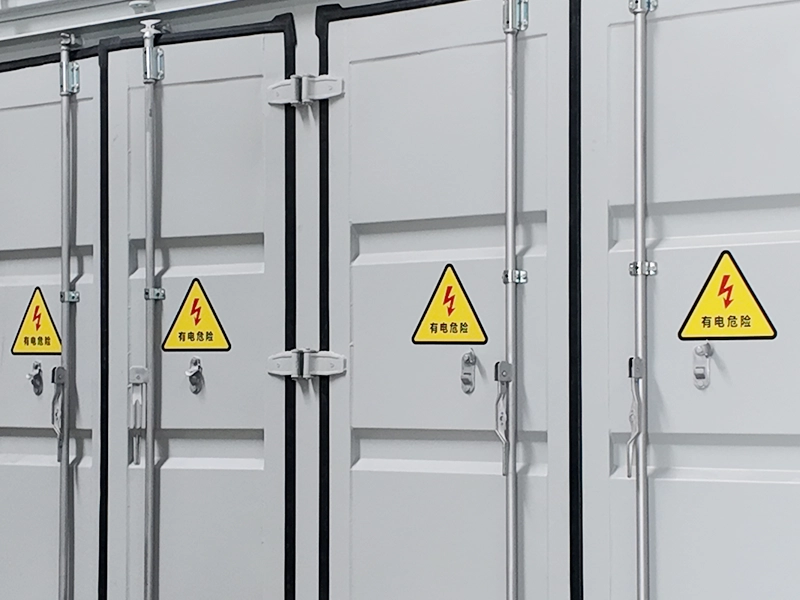

Secure & Safe

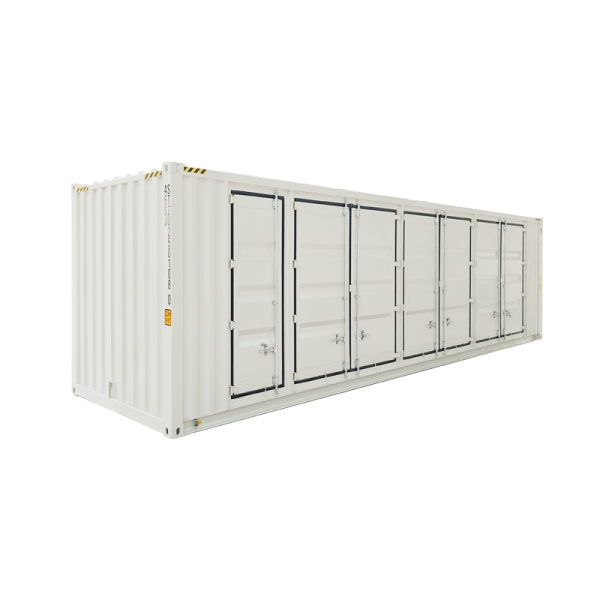

Prefabricated Electrical House (E-House)
- All-in-One Solution
- Rapid Turnkey Deployment
- Compact & Modular
- Weatherproof & Safe
- Customizable Design
Product Overview
The Prefabricated Electrical House (E-House) is a fully prefabricated, modular power distribution solution that integrates medium-voltage switchgear, transformers, low-voltage panels, and auxiliary equipment into a single compact enclosure. Designed for rapid deployment and turnkey installation, it offers high reliability, safety, and flexibility for urban, industrial, and renewable energy projects.
Built for both indoor and outdoor applications, the Electrical House minimizes civil work and installation time while providing secure, weather-resistant, and environmentally friendly power solutions.
Key Features
Technical Parameter
Prefabricated Electrical House Technical Parameters
| Item | Specification |
| Rated Power | 100–2500 kVA |
| MV Voltage | 6–40.5kV |
| LV Voltage | 0.4–0.69 kV |
| Transformer Type | Oil-type / Dry-type |
| Cooling | ONAN / ONAF / AN / AF |
| Switchgear Type | RMU / AIS / GIS |
| Protection | SCADA, relays, metering |
| Standard | IEC / IEEE |
| Enclosure | IP33–IP54 |
| Brand | HONCON |
Standards & Compliance
Prefabricated Electrical House (E-House) is manufactured according to:
- IEC 62271-200 – Metal-enclosed MV switchgear
- IEC 60044 / 61869 – CT & VT
- IEC 60099 – Surge arresters (optional)
- Arc Classification AFL / AFLR (optional)
- ISO 9001 / 14001 / 45001
Configuration Options
- Voltage Levels: 6.6/10/11/20/24/33/35 kV
- Main Components:
- VCB or LBS
- Disconnector & earthing switch
- CT/VT metering
- Protection relays
- Enclosure: Powder-coated steel / stainless steel
- Protection Level: IP3X–IP54
- Installation: Single busbar / double busbar / sectionalized systems
- Cooling: Natural ventilation or forced air
FAQ
Q1: What is the MOQ of the Prefabricated Electrical House (E-House)?
A1: One set.
Q2: Do you support custom voltage or capacity?
A2: Absolutely. We can design transformers according to your project specifications.
Q3: How long is your delivery time?
A3: It depends on the order quantity and generally it takes about 25-30days after the deposit is received.
Q4: Which market do you usually sell?
A4: Middle East, Africa, Europe, Asia, etc.
Q5: How long is the warranty?
A5: Within 12 months from sale date.
Q6: How to know about the difference between E-house and prefabricated substation?
A6: Please find our blog on the difference between E-house and compact substation.
