Oil Immersed Transformer Installation and Acceptance Standards
The acceptance and installation of an oil immersed transformer are critical steps in ensuring the safe, stable, and efficient operation of any power system. From factory inspection to on-site commissioning, each stage directly affects the transformer’s performance, service life, and operational reliability.
A well-structured installation process helps minimize common issues such as oil leakage, overheating, and insulation aging. At the same time, strict acceptance procedures ensure that the equipment meets both technical specifications and project requirements before being put into service.
By following standardized installation practices and thorough inspection protocols, companies can significantly reduce operational risks, extend equipment lifespan, and guarantee a continuous and reliable power supply for industrial, commercial, and utility applications.
As a professional power equipment manufacturer, Haocheng Electric provides comprehensive solutions covering transformer design, inspection, installation, and after-sales support.
Transformer Acceptance Checklist
Upon receiving the transformer, users should immediately verify whether the model and specifications match the contract and nameplate data. In addition, all accessories should be checked for completeness.
Key inspection points include:
Visual and Mechanical Inspection
- Check for any signs of oil leakage or seepage
- Inspect the external structure for damage during transportation
- Verify the condition of fragile components
Critical Components Check
- Signal thermometer
- Bushings
- Transformer protection devices
Any abnormalities should be recorded and addressed before installation.
In practical projects, Haocheng Electric can provide on-site technical guidance and inspection support to ensure that each transformer meets applicable standards and specific application requirements.
Oil Immersed Transformer Installation Procedure
Proper installation for oil immersed transformer is essential to ensure long-term operational safety and performance.
1. Positioning and Handling

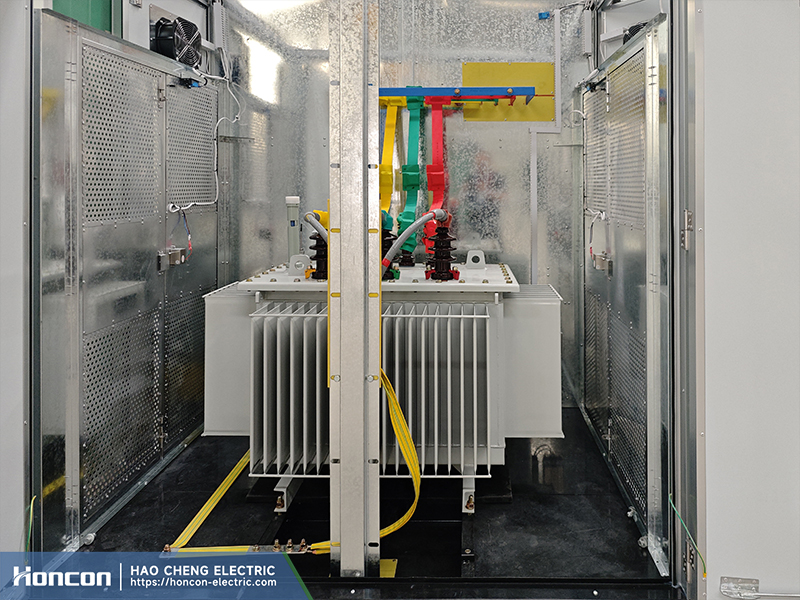

Place the transformer onto the foundation using appropriate lifting equipment. Ensure stable positioning and avoid mechanical impact or tilting during handling.
2. Assembly and Electrical Connection
Install all components and complete wiring connections in accordance with technical drawings and standard procedures.
3. Breather Installation
Install the silica gel breather onto the conservator (if applicable) to maintain proper moisture control inside the transformer.
4. Pressure Relief Device Check
- For hermetically sealed transformers: loosen the cap of the pressure relief valve to ensure proper operation
- For non-sealed transformers: remove the test plate from the pressure relief valve
5. Temperature Monitoring Devices
Before installing mercury thermometers or signal thermometers, ensure the thermometer pocket is fully filled with transformer oil for accurate measurement.
Ensuring Safe and Reliable Operation
Through strict acceptance procedures and standardized installation practices, oil immersed transformer can maintain high efficiency, stability, and safety during operation.
In real-world applications, installation plans should be tailored based on:
- Site conditions
- Applicable national or IEC standards
- Equipment specifications
Working with an experienced technical team not only reduces operational risks but also provides a solid foundation for future system expansion and upgrades.
Why Choose Haocheng Electric
Choosing Haocheng Electric means more than just selecting high-quality oil immersed transformer products. It ensures access to a complete lifecycle service, including:
- Professional product selection guidance
- Factory inspection and on-site acceptance support
- Installation supervision and technical assistance
- Long-term maintenance and after-sales service
With extensive project experience, Haocheng Electric helps clients achieve safer, more efficient, and more reliable power system operation.
