Electric Arc Furnace Harmonic Mitigation and Reactive Power Compensation Solution
Electric arc furnaces are widely used in ferroalloy and metallurgical industries. As high-energy-consumption equipment, they generate significant harmonic distortion and reactive power loss during operation. These harmonics can pollute the power grid, reduce equipment efficiency, increase energy consumption, and interfere with production control systems.
To address these issues, a dedicated harmonic mitigation and reactive power compensation system is required. By combining harmonic filtering devices with reactive power compensation equipment, the solution can effectively improve power quality, reduce harmonic distortion, and ensure stable furnace operation.
Our solution integrates products such as low voltage harmonic filter cabinets, capacitor compensation panels, and dynamic reactive power compensation devices, providing a reliable and energy-efficient power quality improvement system for electric arc furnace applications.
Electric arc furnace harmonic mitigation plays a critical role in maintaining power quality and ensuring stable operation in metallurgical smelting processes.
Causes of Harmonics and Reactive Power Loss in Electric Arc Furnaces
The reactive power demand and harmonic generation of electric arc furnaces mainly result from:
- Strongly fluctuating arc loads
- Inductive characteristics of furnace transformers
- Long short-network structures
- Nonlinear current during smelting processes
For large-capacity electric arc furnaces, the natural power factor is often lower than 0.9, which may lead to utility penalties and increased operational costs. Harmonic currents generated during operation may also cause overheating of electrical equipment and reduced system reliability.
Without effective electric arc furnace harmonic mitigation, harmonic currents can circulate in the power system, causing overheating, voltage distortion, and reduced equipment efficiency.
The reactive power demand and harmonic generation of electric arc furnaces mainly result from strongly fluctuating arc loads, transformer inductive characteristics, and nonlinear current during smelting processes.
Harmonic distortion in industrial power systems has been widely studied by organizations such as the IEEE, which provide guidelines for power quality management.
Harmonic Filtering and Reactive Power Compensation Equipment
To effectively solve these power quality issues, a combination of specialized equipment is commonly applied. A well-designed electric arc furnace harmonic mitigation system typically combines harmonic filters, capacitor banks, and dynamic reactive power compensation devices.
Harmonic Filter Cabinet
A harmonic filter cabinet is designed to suppress dominant harmonic currents generated by electric arc furnaces, particularly the 3rd, 5th, and 7th harmonics. By using tuned filter circuits, the cabinet absorbs harmonic currents and prevents them from entering the upstream power network.
Key benefits include:
- Reduction of harmonic distortion
- Protection of transformers and electrical equipment
- Improved grid power quality

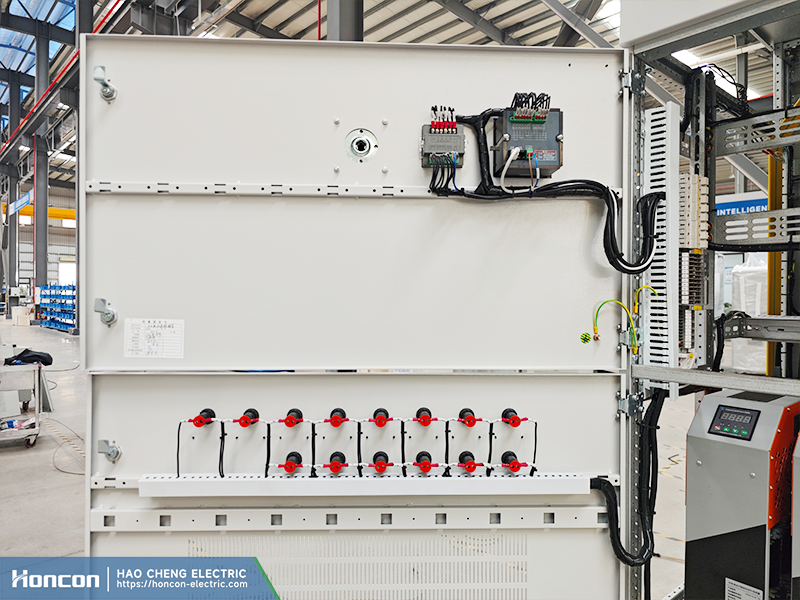

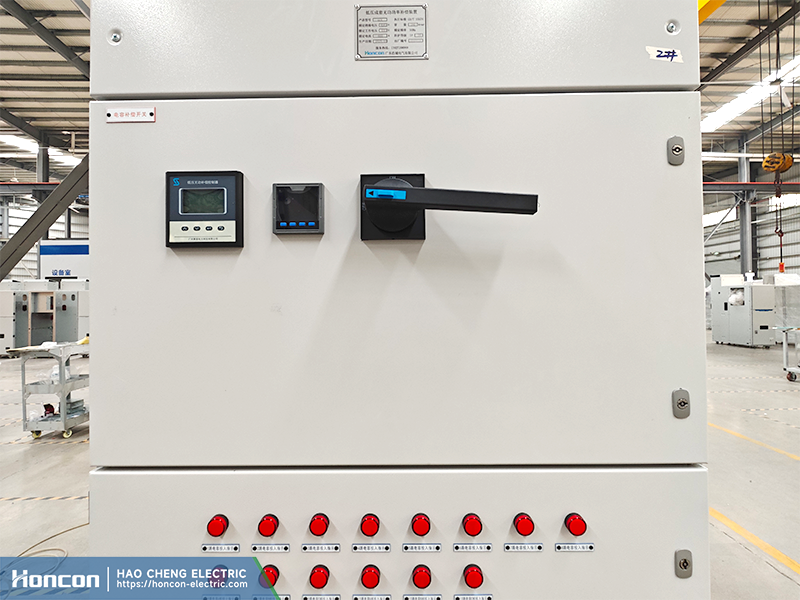

Low Voltage Capacitor Compensation Cabinet
A low voltage capacitor compensation cabinet provides reactive power support to improve the power factor of the furnace power supply system.
Main advantages include:
- Increase power factor to above 0.92
- Reduce reactive power losses
- Improve utilization of electrical capacity
- Lower electricity penalties from utilities
Dynamic Reactive Power Compensation Device (SVG)
For electric arc furnaces with rapidly changing loads, a Static Var Generator (SVG) or dynamic reactive power compensation system can provide fast and precise reactive power control.
This dynamic device offers:
- Real-time reactive power compensation
- Improved voltage stability
- Rapid response to load fluctuations
- Enhanced smelting process stability
Energy Saving and Production Benefits
In many industrial projects, electric arc furnace harmonic mitigation has proven to be an effective method for improving energy efficiency and stabilizing furnace operation. Practical engineering applications show that combining harmonic filtering and reactive power compensation equipment can significantly improve furnace operation.
Typical benefits include:
- Increase effective active power input
- Reduce overall energy consumption by more than 3%
- Increase production output by approximately 10%
- Eliminate harmonic pollution in the electrical network
- Improve overall power system stability
These improvements not only enhance operational efficiency but also extend the service life of electrical equipment.
Customized Power Quality Solutions for Industrial Furnaces
A properly designed electric arc furnace harmonic mitigation system not only improves power quality but also helps protect transformers, switchgear, and other electrical equipment.
With extensive experience in industrial power systems and metallurgical furnace projects, Haocheng Electric provide customized harmonic mitigation and reactive power compensation solutions tailored to specific furnace capacities and operating conditions.
Our engineering team can design integrated systems including:
- Harmonic filter cabinets
- Low voltage capacitor compensation panels
- Dynamic reactive power compensation equipment
- Complete power quality improvement systems
Based on your furnace specifications and production requirements, we can deliver a reliable solution that reduces energy consumption, improves power factor, and ensures stable industrial operation.
For ferroalloy and metallurgical industries, implementing electric arc furnace harmonic mitigation is essential for achieving reliable power systems and long-term energy savings.
