Distributed Grid-Connected Solar PV System Solution
A distributed grid-connected solar photovoltaic (PV) system converts solar energy into electrical power through photovoltaic modules. As a clean and renewable energy solution, distributed PV systems provide long-term environmental benefits while improving the stability and reliability of power generation.
Unlike centralized power plants, distributed PV systems are typically installed close to the electricity consumers. The generated electricity is mainly used for self-consumption, while surplus power can be fed back to the grid. This approach reduces dependence on external power supply, minimizes transmission losses, and improves overall energy efficiency.
In addition, photovoltaic modules can be installed on building rooftops, factory roofs, or other available structures. This flexible installation method allows distributed PV systems to be widely deployed in industrial parks, commercial buildings, and residential areas.
A distributed solar PV grid connection cabinet plays a critical role in ensuring safe and stable power delivery between the photovoltaic system and the utility grid.

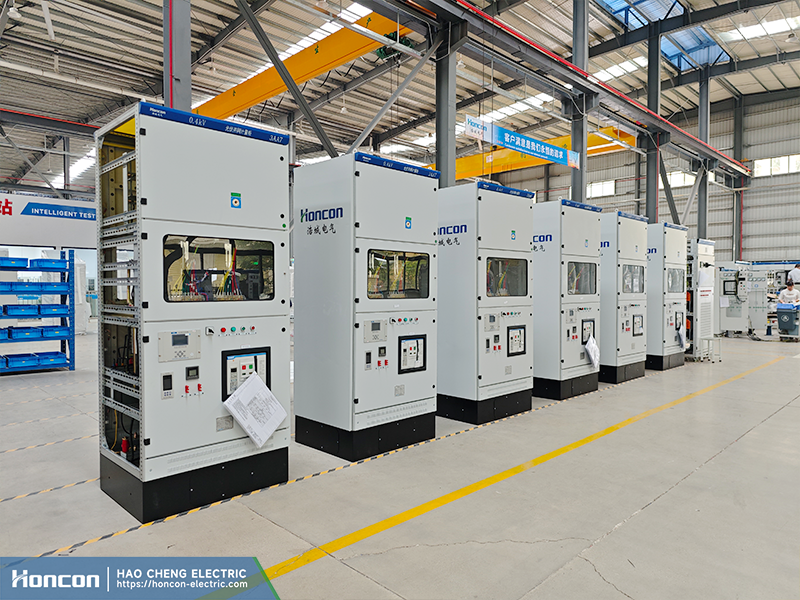

Distributed Solar PV Grid Connection Cabinet and Its Key Functions
The PV grid connection cabinet is one of the core components in a distributed grid-connected solar PV system. It serves as the interface between the photovoltaic power station and the utility grid. In most projects, the distributed solar PV grid connection cabinet integrates protection devices, isolation switches, and metering units to ensure reliable grid connection.
A typical grid connection cabinet integrates several important devices, including:
- Isolation switches
- Circuit breakers
- Protection relays
- Metering devices
- Monitoring instruments
These components enable the cabinet to perform multiple functions such as system protection, power metering, and maintenance isolation. When combined with photovoltaic inverters, the grid connection cabinet forms a complete electrical integration solution for distributed PV systems.
The cabinet also provides comprehensive electrical protection and allows operators to monitor key operating parameters, ensuring safe and efficient power delivery to the grid.
Why a Distributed Solar PV Grid Connection Cabinet Is Important？
A distributed solar PV grid connection cabinet serves as the interface between the photovoltaic system and the utility grid, providing protection, isolation, metering, and operational monitoring.
Operational Challenges in Grid-Connected PV Systems
Without a properly designed distributed solar PV grid connection cabinet, grid fluctuations and inverter harmonics may affect system stability.
During operation, grid-connected PV systems may face several technical challenges that can affect system stability and grid reliability.
First, fluctuations in the utility grid or sudden load changes may influence the operating conditions of the PV system. Second, photovoltaic inverters can generate harmonic currents that affect power quality in the distribution network.
In addition, the output power of solar PV systems naturally fluctuates due to variations in solar irradiance. These fluctuations may introduce voltage instability or other power quality issues if not properly managed.
Therefore, ensuring reliable protection and real-time monitoring is essential for maintaining stable grid integration.
Anti-Islanding Protection and Power Quality Monitoring
To address the challenges of distributed PV grid integration, the system can be equipped with anti-islanding protection devices and power quality monitoring equipment.
Anti-Islanding Protection Device
An anti-islanding protection device is designed to detect abnormal grid conditions and prevent the PV system from operating independently when the utility grid is disconnected.
Key benefits include:
- Rapid detection of islanding conditions
- Automatic disconnection from the grid
- Protection of maintenance personnel and electrical equipment
- Compliance with grid interconnection standards
Power Quality Monitoring Device
A power quality monitoring device continuously measures electrical parameters such as:
- Voltage and current
- Frequency
- Harmonic distortion
- Power factor
Real-time monitoring enables operators to quickly identify abnormal conditions and maintain stable operation of both the PV system and the distribution network.
Reliable Distributed Solar PV Integration Solutions
A reliable distributed solar PV grid connection cabinet is often integrated with low voltage switchgear, forming a complete power management solution for safe and stable grid connection. With practical experience in domestic and international photovoltaic projects, we provide professional solutions for distributed grid-connected solar PV systems. Our engineering team understands the operational challenges associated with grid integration and power quality management.
Based on specific project requirements, we can provide customized solutions including:
- PV grid connection cabinets
- Protection and metering systems
- Anti-islanding protection devices
- Power quality monitoring equipment
By integrating reliable electrical equipment and system design, distributed solar PV systems can operate safely and efficiently while contributing to sustainable energy development.
A high-quality distributed solar PV grid connection cabinet helps maintain power quality and ensures reliable operation of distributed photovoltaic systems. Grid-connected photovoltaic systems should comply with international standards such as those published by the IEC.
If you have a distributed photovoltaic project or grid integration requirements, our team can develop a tailored technical solution based on your site conditions and electrical specifications.
