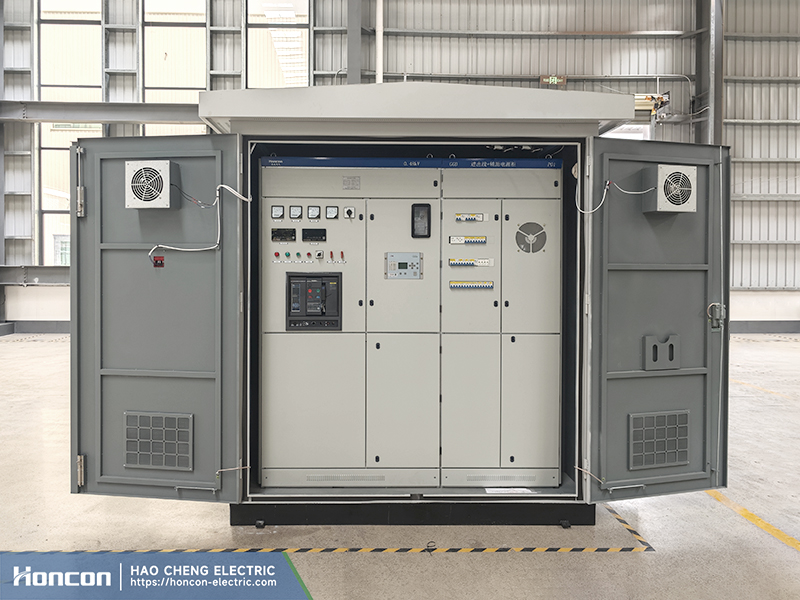

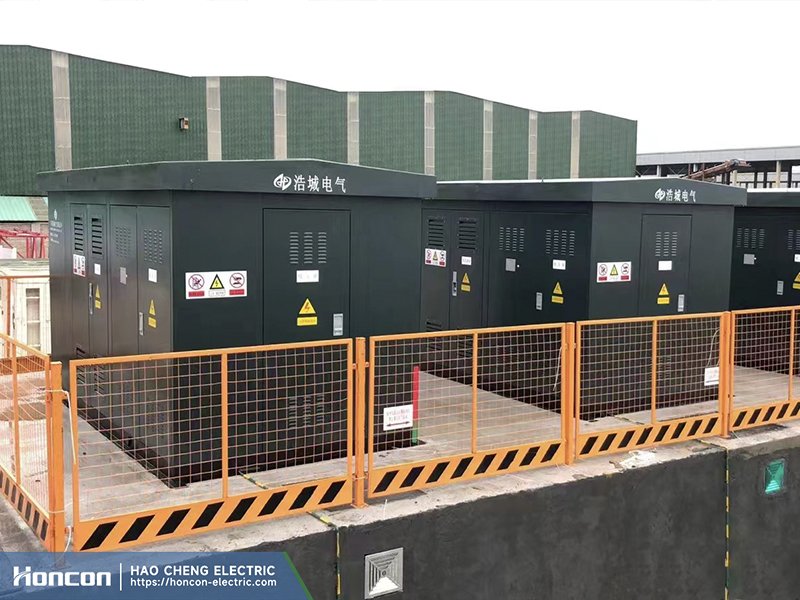

Compact Substation Faults and Maintenance Guide
Compact substations (also known as prefabricated or box-type substations) play a vital role in modern power distribution systems. As their application expands across industrial parks, residential developments, and renewable energy projects, ensuring proper compact substation maintenance and timely fault handling becomes increasingly important.
Common compact substation faults include equipment overheating, insulation aging, protection trips, and environmental impacts. Without proper maintenance, these issues can affect system stability and lead to unexpected downtime.
Implementing a structured compact substation maintenance plan not only extends equipment lifespan but also improves operational safety and ensures continuous power supply.
Common Compact Substation Faults and Troubleshooting
Based on field experience, the following are typical compact substation faults and recommended troubleshooting methods:
1. High Voltage Switch Trips Immediately
Issue: The high-voltage switch cannot be energized or trips instantly after closing.
Solution:
Check the oil level inside the Buchholz relay of the transformer. If the oil level drops below the required level, release trapped air and refill transformer oil if necessary.
2. Power Factor Meter Inaccuracy
Issue: The capacitor cabinet power factor reading does not match actual values.
Solution:
After disconnecting power, interchange the two current wires (A401 and A402).
3. Transformer Oil Inspection
For substations equipped with oil-immersed transformers, oil sample analysis should be carried out at least once a year to ensure insulation performance and safe operation.
4. High Voltage Switchgear Wear
After 20 load operations or 2000 no-load operations, inspect the contact condition and arc extinguishing components. Replace any damaged parts promptly.
5. Low Voltage Trip Issues
If the low-voltage switchgear trips automatically, identify and resolve the root cause before re-energizing the system.
6. Surge Arrester Testing
Perform preventive testing on surge arresters before and after the rainy season each year to ensure protection reliability.
7. Capacitor Bank Maintenance
Regular inspection is required, especially during high-temperature seasons. Fasteners should be checked and tightened during seasonal transitions to avoid issues caused by thermal expansion and contraction.
8. Capacitor Damage
If capacitors show signs of swelling, oil leakage, or cracking, they must be replaced immediately.
9. Door Alignment Issues
Issue: Difficulty opening substation doors due to misalignment.
Solution:
Check whether the foundation is level and adjust the base frame accordingly.
Best Practices for Compact Substation Maintenance
Effective compact substation maintenance requires a combination of routine inspection and preventive measures. Key recommendations include:
- Establish a regular inspection schedule
- Implement condition monitoring systems
- Perform preventive maintenance on critical components
- Ensure proper environmental protection
By adopting these practices, operators can reduce the risk of unexpected failures and improve system reliability.
Ensuring Long-Term Reliability
A proactive approach to handling compact substation faults and maintenance significantly enhances operational stability and reduces economic losses caused by power outages.
In practical applications, companies should combine:
- Routine inspection
- Preventive maintenance
- Smart monitoring technologies
Working with experienced professionals ensures faster fault diagnosis and supports future system expansion and upgrades.
