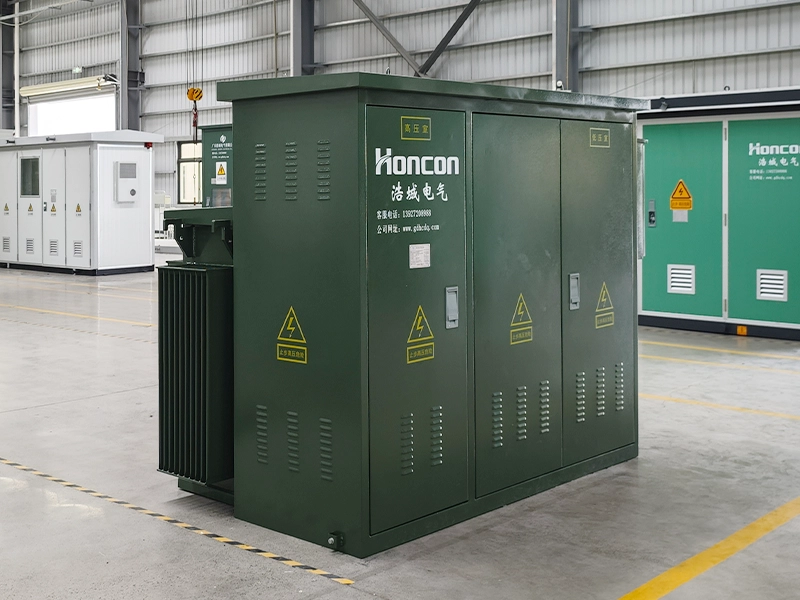

Weather-Resistant Design

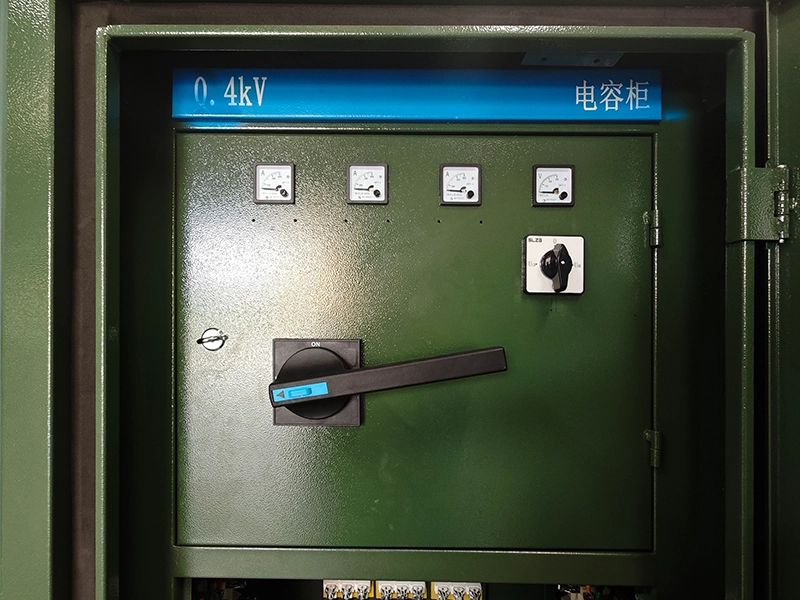

Operator Protection

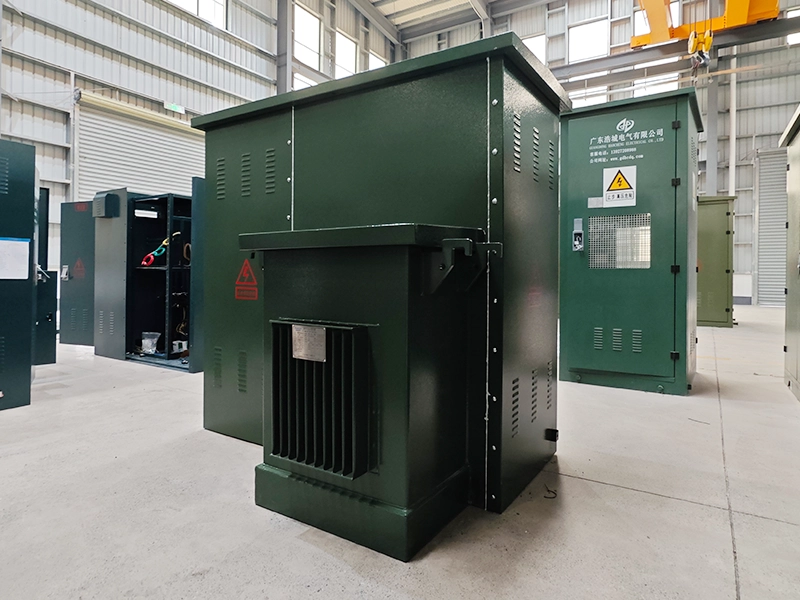

Long-Lasting Build

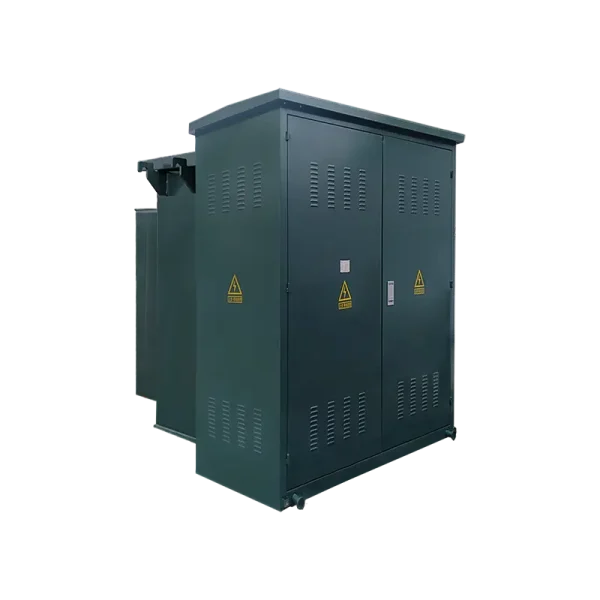

Pad Mounted Transformer
- Tamper-Proof Safety
- High-Efficiency Cooling
- Underground Distribution Ready
- Utility-Grade Reliability
- Front-Access Maintenance
Product Overview
The pad mounted transformers are designed for underground distribution systems, providing safe, reliable, and high-efficiency power delivery for commercial, industrial, and utility applications. Built in a completely enclosed, tamper-proof cabinet, these transformers are ideal for public areas and demanding outdoor environments. With front-accessible compartments and dead-front or live-front options, they ensure easy installation, high safety, and long-term performance.
Key Features
Technical Parameter
| Item | Specification |
| Rated Power | 15–5000 kVA |
| HV Voltage | 6.6 kV / 12.47 kV / 13.2 kV / 13.8 kV / 22kV / 24.94 kV/ 33 kV / 35 kV (customizable) |
| LV Voltage | 0.38kV / 0.4 kV / 0.48 kV / 0.6 kV / customized |
| Frequency | 50 Hz / 60 Hz |
| Vector Group | Dyn11, Yyn0, Yd11, Wye, or specified |
| Winding Material | Copper or Aluminium |
| Impedance | As per standard or customized |
| Cooling Method | ONAN / ONAF |
| BIL Level | 30–150 kV |
| Protection Level | IP00 / IP23 / customized |
| Standard | IEC / IEEE |
| Brand | HONCON |
Standards & Compliance
Manufactured according to:
- IEC 62271-200 – Metal-enclosed MV switchgear
- IEC 60044 / 61869 – CT & VT
- IEC 60099 – Surge arresters (optional)
- Arc Classification AFL / AFLR (optional)
- ISO 9001 / 14001 / 45001
Configuration Options
Voltage Levels: 6/10/11/20/24/33/35 kV
Main Components: VCB or LBS
Disconnector & earthing switch
CT/VT metering
Protection relays
Enclosure: Powder-coated steel / stainless steel
Protection Level: IP3X–IP54
Installation: Single busbar / double busbar / sectionalized systems
Cooling: Natural ventilation or forced air
FAQ
Q1: What is the MOQ of the order?
A1: One set.
Q2: Do you support custom voltage or capacity?
A2: Absolutely. We can design transformers according to your project specifications.
Q3: How long is your delivery time?
A3: It depends on the order quantity and generally it takes about 25-30days after the deposit is received.
Q4: Which market do you usually sell?
A4: Middle East, Africa, Europe, Asia, etc.
Q5: How long is the warranty?
A5: Within 12 months from sale date.
