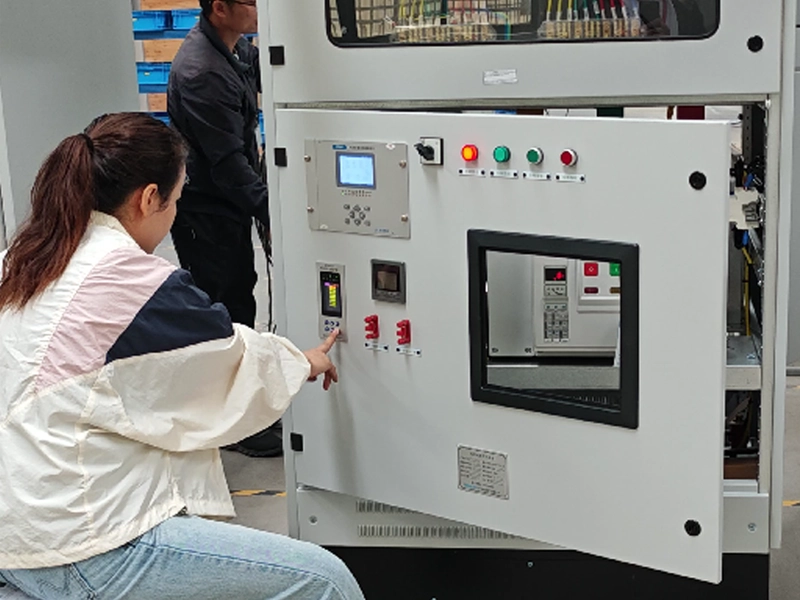

Stable Operation

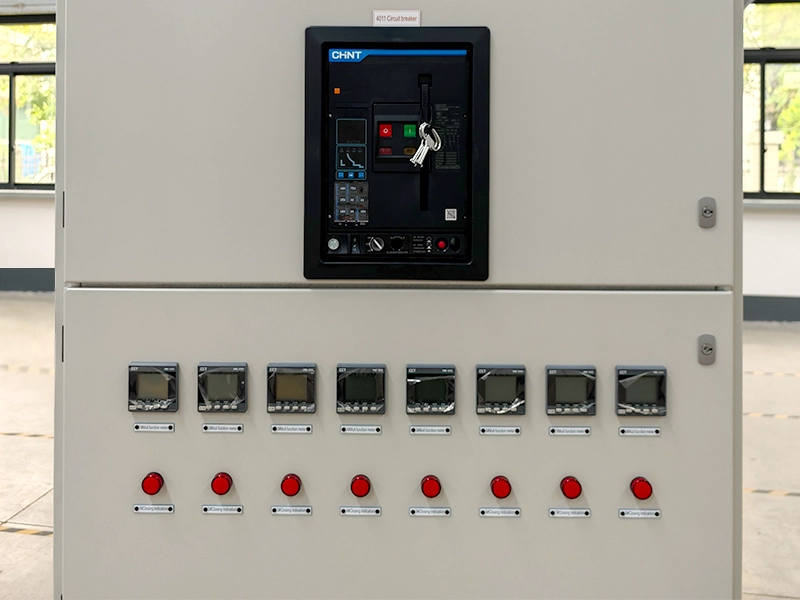

Smart Monitoring

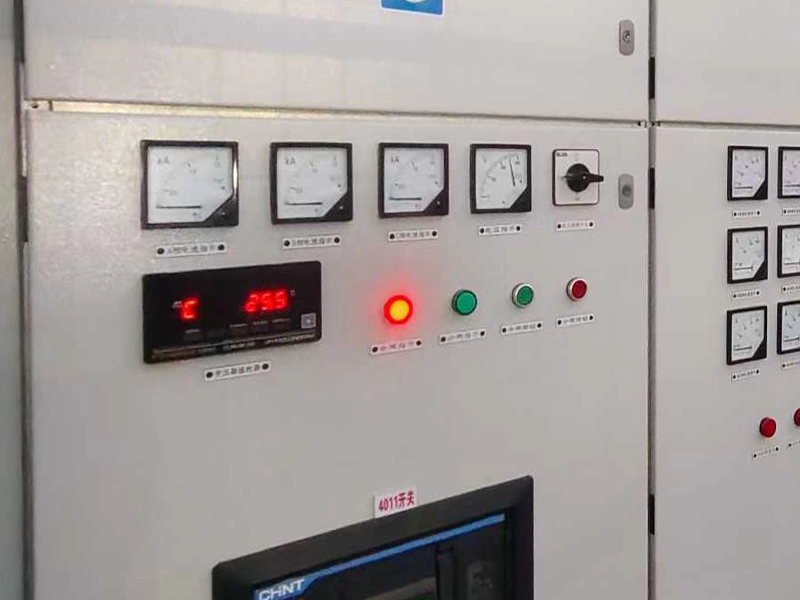

Reliable Performance

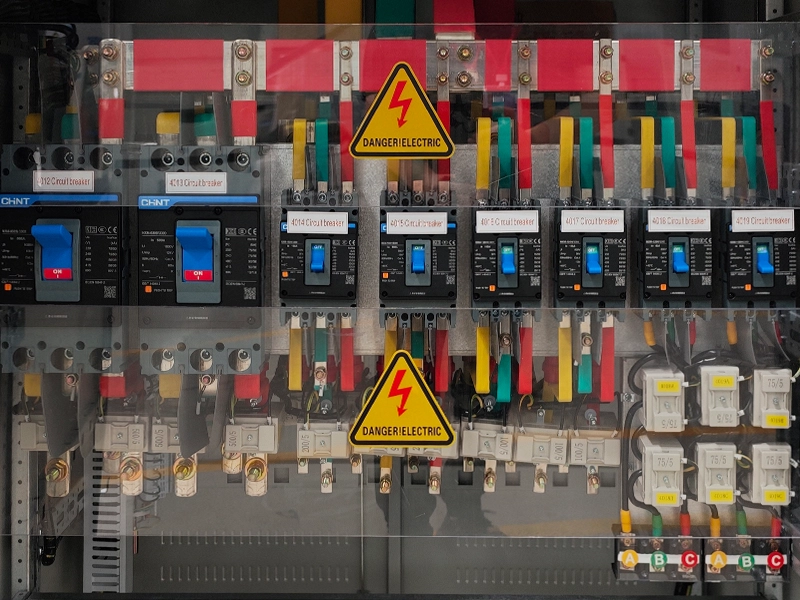

Operator Protection

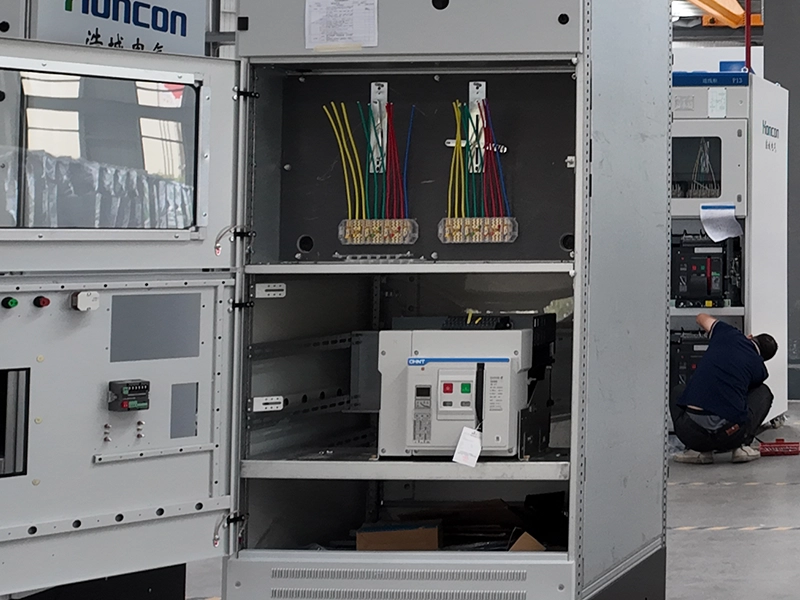

Modular Configuration

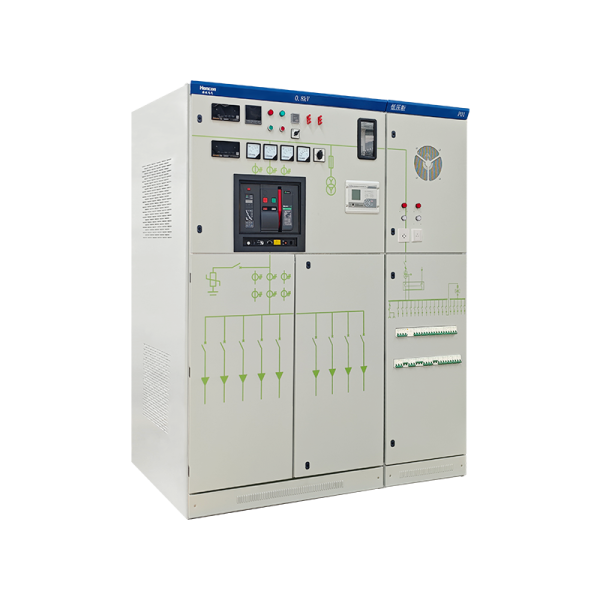

Low Voltage Fixed Distribution Cabinet (GGD)
- Stable Fixed Design
- Safe LV Distribution
- Strong Mechanical Reliability
- Flexible Configuration Options
- Easy Installation & Maintenance
Product Overview
The low voltage fixed switchgear is a reliable LV power distribution solution designed for industrial, commercial, and utility applications. All components—including breakers, contactors, meters, and busbars—are fixed-mounted, providing strong mechanical stability and simplified operation.
With a fully metal-enclosed structure and standardized compartment layout, the cabinet ensures safe, efficient, and stable distribution of low-voltage power. It is ideal for environments requiring long service life, low maintenance, and high electrical reliability.
Key Features
Technical Parameter
| Item | Specification |
| Rated Voltage | AC 380–415V |
| Rated Current | 100–4000 A |
| Frequency | 50 Hz / 60 Hz |
| Short-Circuit Level | 25–65 kA |
| Protection Level | IP30–IP54 |
| Standard | IEC / IEEE |
| Brand | HONCON |
Standards & Compliance
Compliant with:
- IEC 61439-1 / 61439-2
- IEC 60947 – LV switching devices
- IEC 60529 – IP protection
- ISO 9001 / 14001 / 45001
Configuration Options
- Rated Voltage: 380V / 400V / 415V
- Rated Current: 100A – 4000A
- Main Devices: MCCBs, MCBs, ACBs, contactors, meters, relays
- Busbar System: Copper or aluminum
- Cabinet Type: Power distribution / lighting distribution / motor control
- Protection Level: IP30 / IP40 / IP54
- Installation: Floor-standing / wall-mounted
FAQ
Q1: What is the MOQ of the order?
A1: One set.
Q2: Do you support custom voltage or capacity?
A2: Absolutely. We can design transformers according to your project specifications.
Q3: How long is your delivery time?
A3: It depends on the order quantity and generally it takes about 25-30days after the deposit is received.
Q4: Which market do you usually sell?
A4: Middle East, Africa, Europe, Asia, etc.
Q5: How long is the warranty?
A5: Within 12 months from sale date.
