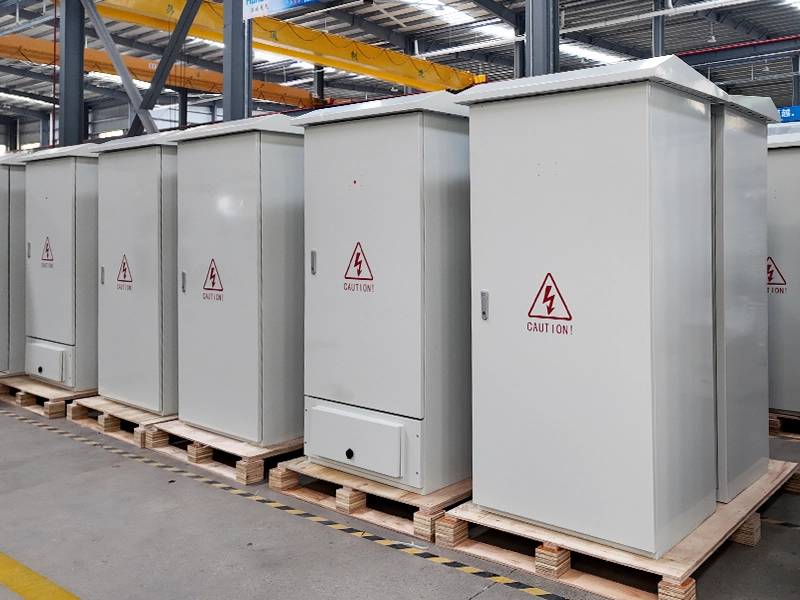

Space-Saving Layout

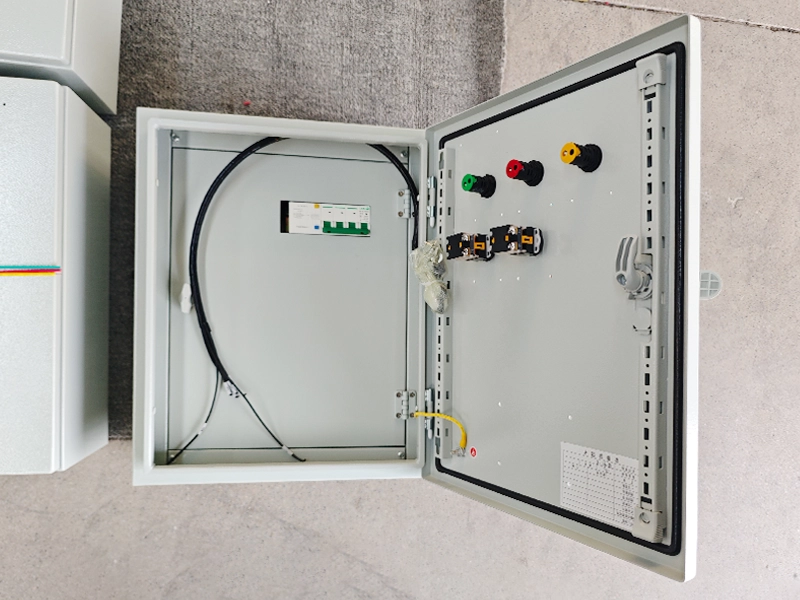

Robust Construction

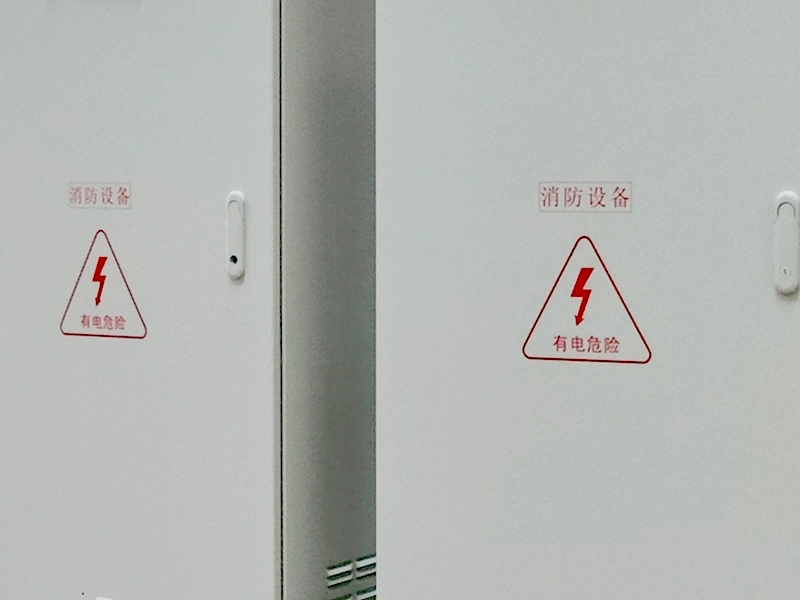

Operator Protection

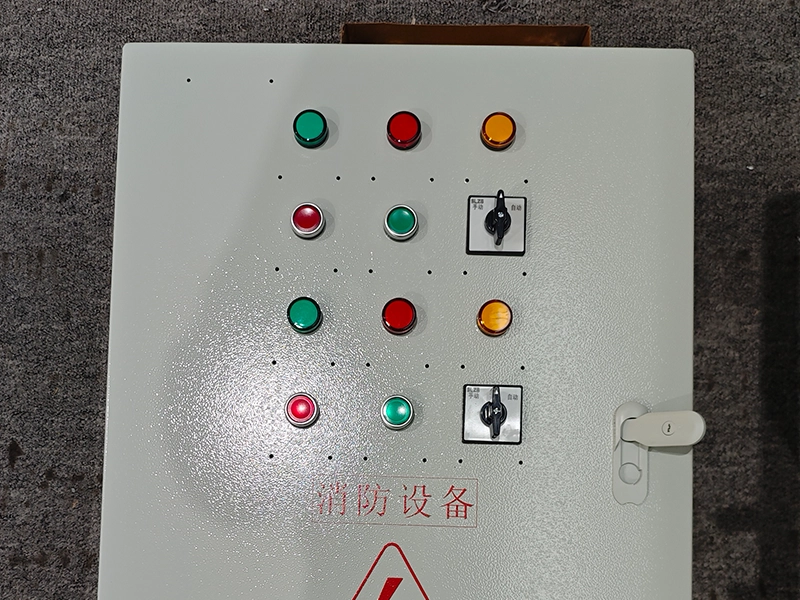

High Reliability

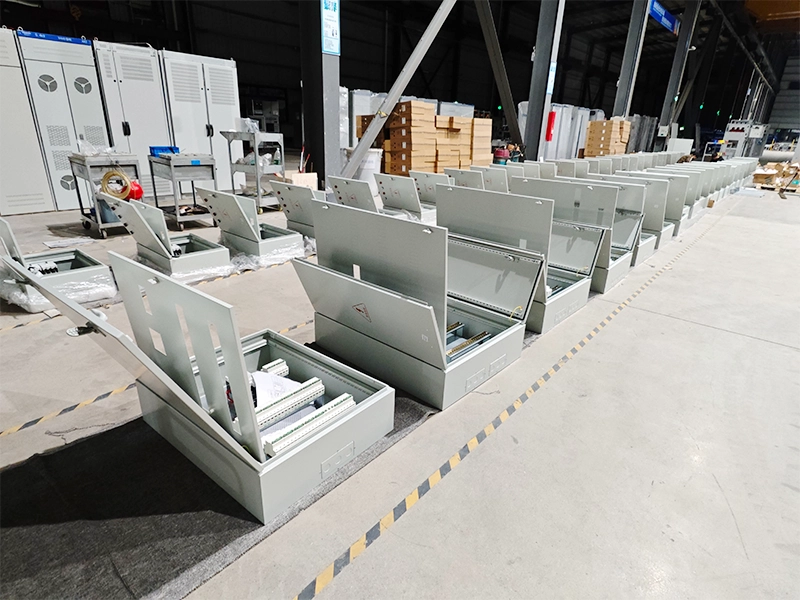

Customizable Options

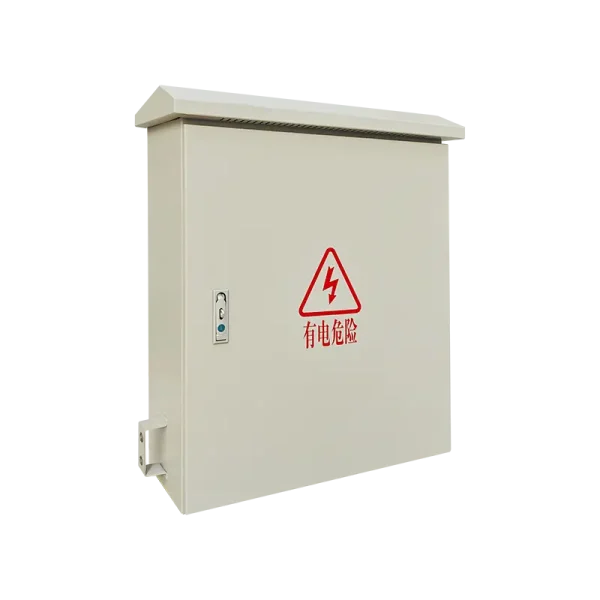

Low Voltage Distribution Box (XM)
- Compact & Durable Design
- Reliable Power Distribution
- Safe & IP-Protected
- Easy Installation & Maintenance
- Customizable Configuration Options
Product Overview
The Low Voltage Distribution Box is a compact and reliable solution for secondary power distribution in industrial, commercial, and residential applications. Designed with a robust steel enclosure, it safely houses circuit breakers, fuses, and control devices to manage lighting, motor loads, and other electrical circuits.
With a simple structure, clear labeling, and easy access, the distribution box ensures safe operation, quick maintenance, and reliable protection for low-voltage electrical systems.
Key Features
Technical Parameter
| Item | Specification |
| Rated Voltage | 220 V / 380 V / 400 V / 415 V |
| Rated Current | 63–4000 A |
| Frequency | 50 Hz / 60 Hz |
| Short-Circuit Withstand | 6–65 kA (according to configuration) |
| Protection Level | IP30–IP54 (wall-mounted / outdoor options) |
| Number of Circuits | 2 – 36 (customizable) |
| Enclosure Material | Powder-coated steel, stainless steel (optional) |
| Mounting Type | Wall-mounted / Floor-standing |
| Busbar Material | Copper or Aluminum |
| Optional Features | Surge Protection Device (SPD), Energy Metering, Modular Breaker Units, Remote Monitoring |
| Standard | IEC / IEEE |
| Brand | HONCON |
Standards & Compliance
Manufactured to comply with:
- IEC 61439-1 / 2 – Low-voltage switchgear and controlgear assemblies
- IEC 60529 – IP protection
- ISO 9001 / ISO 14001 – Quality and environmental management standards
Configuration Options
Rated Voltage: 220V, 380V, 400V, 415V
Rated Current: 63–400A
Enclosure: Powder-coated steel, stainless steel (optional)
Protection Level: up to IP54
Mounting: Wall-mounted / floor-standing
Optional Features: Energy metering, surge protection, modular circuit breaker units
FAQ
Q1: What is the MOQ of the order?
A1: One set.
Q2: Do you support custom voltage or capacity?
A2: Absolutely. We can design transformers according to your project specifications.
Q3: How long is your delivery time?
A3: It depends on the order quantity and generally it takes about 25-30days after the deposit is received.
Q4: Which market do you usually sell?
A4: Middle East, Africa, Europe, Asia, etc.
Q5: How long is the warranty?
A5: Within 12 months from sale date.
