Why Cable Fault Location Is Critical in Medium Voltage Switchgear
In modern mv switchgear systems, especially in 6–110kV distribution networks, cable faults remain one of the most challenging issues for operation and maintenance teams.
Traditional fault location methods—such as manual patrol inspection or sectional re-energizing—are time-consuming, inefficient, and often lead to prolonged outages. These approaches are no longer suitable for today’s smart and reliability-driven power distribution systems.
Smart Cable Fault Indicator for MV Distribution Networks

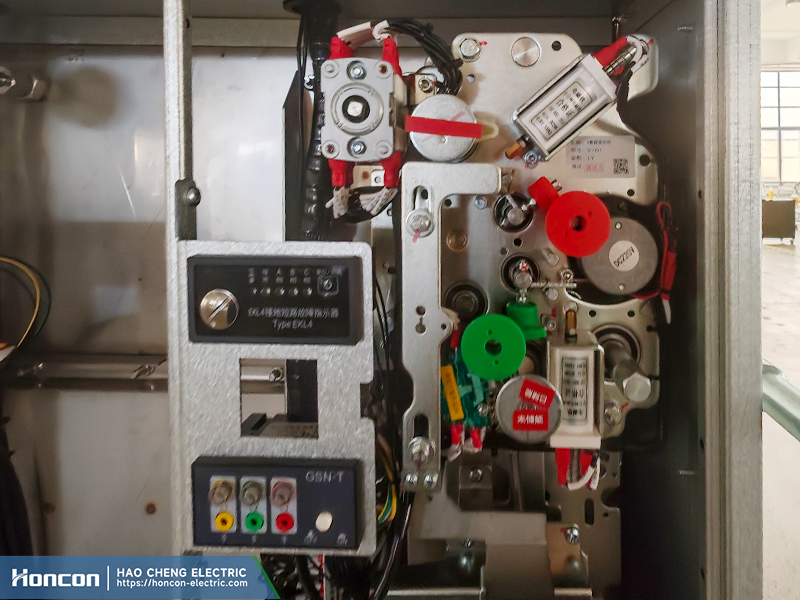

The cable short-circuit fault indicator is specifically designed for underground cable systems integrated within mv switchgear, including:
Ring Main Units (RMU)
Gas-Insulated Switchgear (GIS)
Compact substations
Cable branch boxes
By continuously monitoring current variations and voltage loss, the device can accurately identify faulted sections and branches in real time.
Clear Visual Indication for Fast Fault Identification
During normal operation, the indicator displays a flashing green signal, providing a clear visual confirmation of healthy cable conditions.
When a short circuit fault occurs, a red alarm indication is triggered instantly, enabling maintenance personnel to quickly locate the faulted section. This significantly reduces troubleshooting time, shortens outage duration, and improves overall power supply reliability.
Advanced Detection Logic to Prevent False Alarms
Unlike conventional devices with fixed thresholds, this fault indicator adopts an adaptive detection algorithm.
No fixed current threshold setting required
Intelligent differentiation between load fluctuation and fault current
Fault is triggered only when:
Current surge exceeds 150A within 20ms
Simultaneous loss of main circuit voltage
This dual-condition logic effectively eliminates false tripping and ensures high accuracy in complex network environments.
Seamless Integration with Digital Switchgear Systems
Designed for modern digital medium voltage switchgear, the indicator supports:
Three-phase bistable display units
Manual, timed, and remote reset functions
SCADA system integration
Compatibility with 12–60 VAC/DC remote control signals
This makes it an ideal solution for smart grid applications and remote monitoring systems.
Enhancing MV Switchgear Reliability with Integrated Solutions
As a manufacturer specializing in medium and low voltage switchgear, we provide fully integrated solutions combining:
Switchgear systems
Fault indicators
Monitoring and protection devices
Our products are engineered for safety, reliability, and intelligent operation, enabling efficient coordination between equipment and significantly improving distribution network performance.
